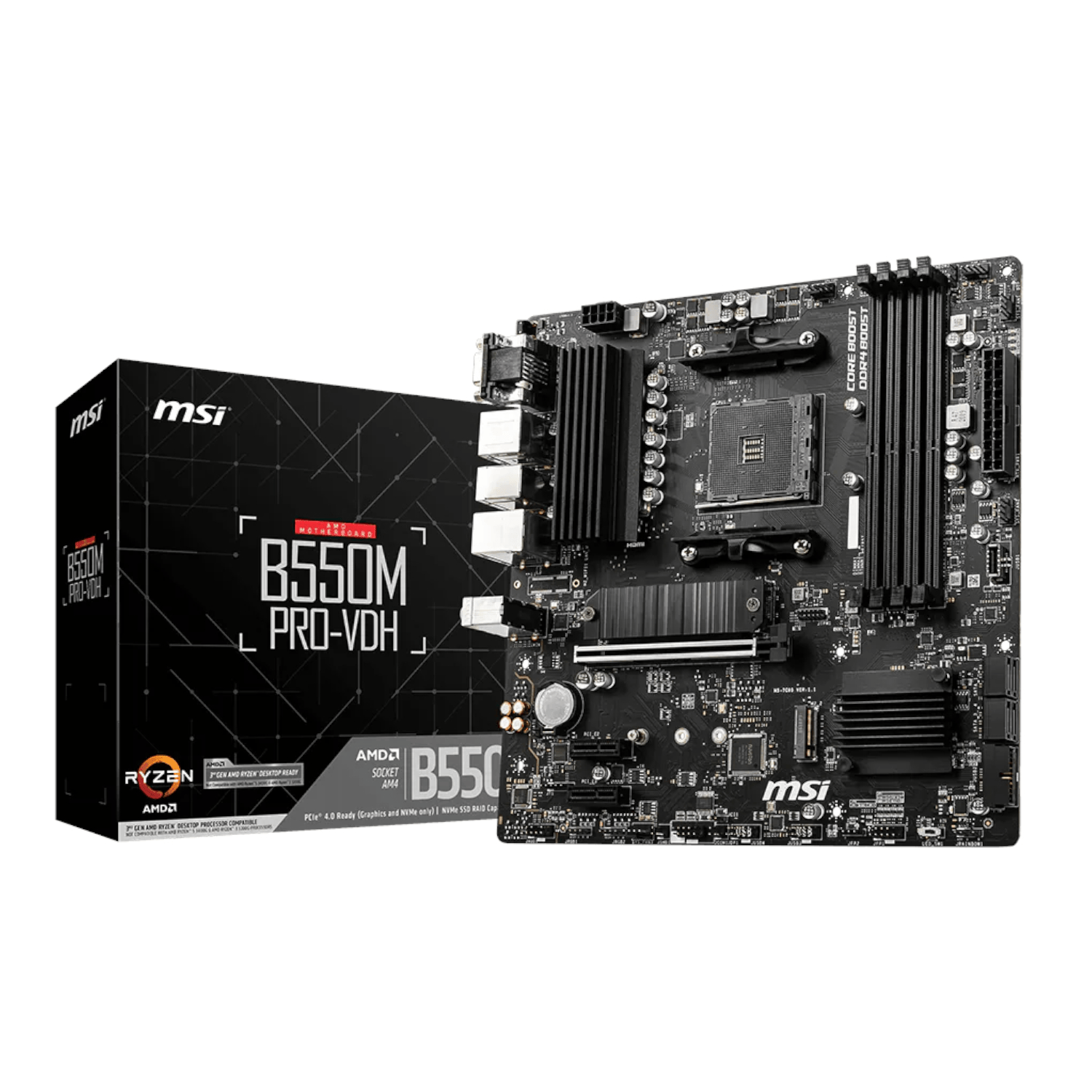

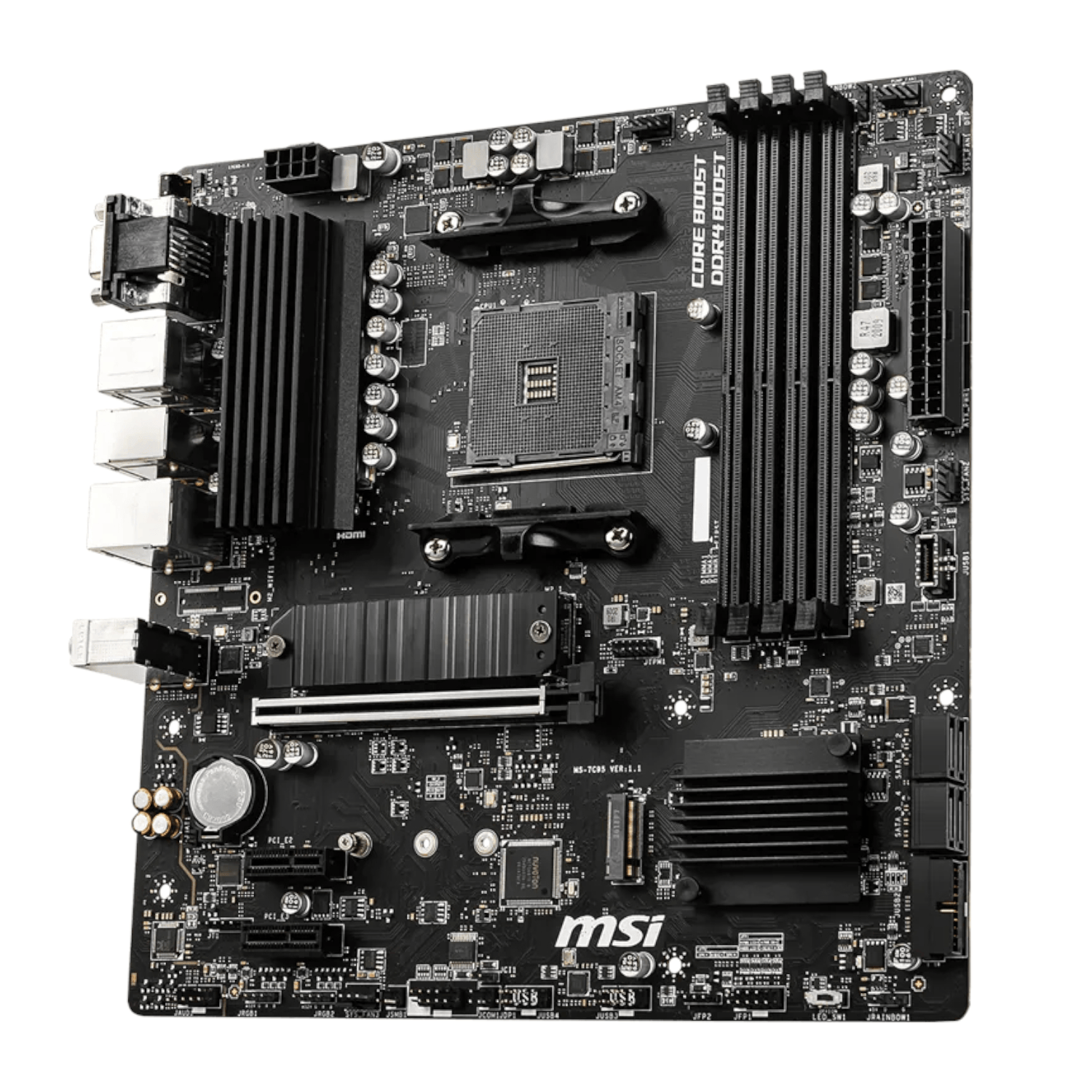

MSI B550M PRO-VDH AM4 M-ATX Motherboard
This item isn't available to order online right now. Ask us and we'll check stock and lead time with the supplier.
- Orders are normally delivered within 3 to 5 working days. Free delivery over R 2 500.
- Need it installed or configured? Our technicians can help.
AMD AM4 socket with B550 chipset | PCIe 4.0 M.2 storage with thermal shielding | Up to 128 GB DDR4 memory | Triple display output | Flash BIOS without a CPU installed
The MSI B550M PRO-VDH is a Micro-ATX motherboard built for system builders who want a reliable, feature-complete AMD platform without unnecessary complexity. Paired with the AMD B550 chipset and AM4 socket, it supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors (excluding Ryzen 5 3400G and Ryzen 3 3200G), giving you a broad range of CPU options for productivity and everyday computing builds. Four DDR4 memory slots accommodate up to 128 GB of RAM in dual-channel configuration, with support for speeds up to 4400 MHz via A-XMP OC mode for those who want to push performance further. Two M.2 slots — the first running PCIe 4.0 x4 from the processor, the second PCIe 3.0 x4 from the chipset — are complemented by M.2 Shield Frozr heatsinks that keep SSDs cool under sustained workloads, preventing thermal throttling. Four SATA 6 Gb/s ports, a PCIe 4.0/3.0 x16 slot, and a generous rear I/O panel including VGA, DisplayPort, and HDMI 2.1 outputs round out a well-equipped board ready for a compact, capable build.
Features
- AMD AM4 socket supports Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors
- PCIe 4.0 x4 M.2 slot (M2_1, from CPU) and PCIe 3.0 x4 M.2 slot (M2_2, from chipset) — both with M.2 Shield Frozr thermal coverage
- Four DDR4 slots supporting up to 128 GB, with speeds up to 4400 MHz (OC) in dual-channel

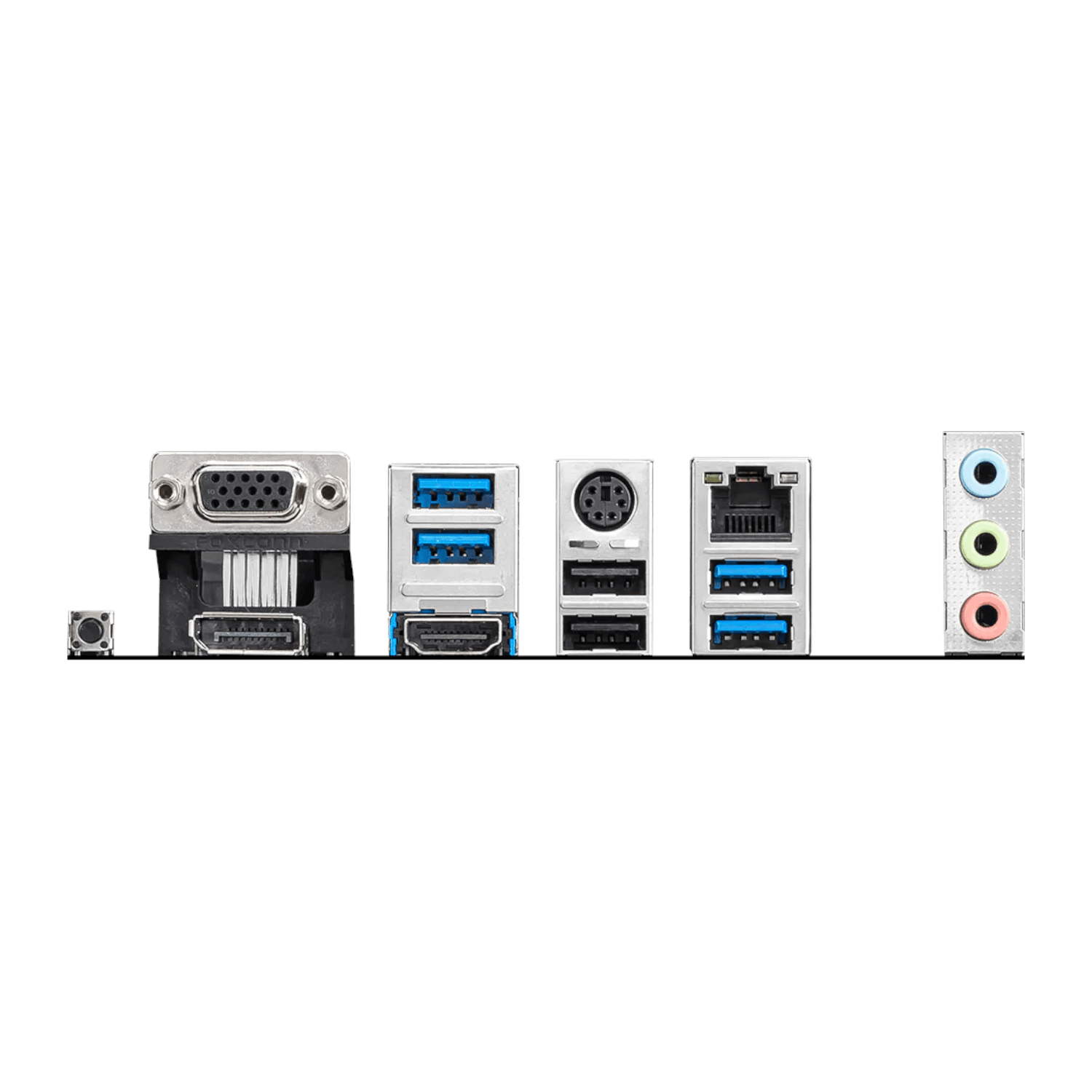

- Triple display output: VGA, DisplayPort, and HDMI 2.1 — each supporting up to 4K where the CPU's integrated graphics allow
- Core Boost and DDR4 Boost technologies with a 2 oz thickened copper PCB for improved power delivery and signal integrity
- Flash BIOS Button enables BIOS updates via USB without a CPU, memory, or graphics card installed
- Realtek ALC892/ALC897 7.1-channel HD audio codec for clear, detailed sound output
- Realtek 8111HN Gigabit LAN for stable 1 Gbps wired connectivity
Specifications
- Socket: AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- Memory Type: DDR4
- Memory Slots: 4
- Max Memory: 128GB
- M.2 Slots: 2
- PCIe Version: PCIe 4.0 / PCIe 3.0
- LAN Speed: 1 Gbps
- Rear USB Ports: 4x USB 3.2 Gen 1 5Gbps Type-A,2x USB 2.0 Type-A
- Colour: Black
- Product Dimensions: 24.4 x 24.4 cm
What's in the Box
- MSI B550M PRO-VDH AM4 M-ATX Motherboard x1
- SATA Cables x2
- I/O Shield x1
- Quick Installation Guide x1
| Brand | MSI |
|---|---|
| Product code | B550M PRO-VDH |
| Colour | Black |
| Chipset | AMD B550 |
| M two slots | 2 |
| Lan speed | 1 Gbps |
| Socket | AM4 |
| Form factor | Micro-ATX |
| Memory type | DDR4 |
| Memory slots | 4 |
| Model number | B550M PRO-VDH |
| Pcie version | PCIe 4.0 / PCIe 3.0 |
| Max memory | 128GB |
| Rear usb ports | 4x USB 3.2 Gen 1 5Gbps Type-A,2x USB 2.0 Type-A |
| Product dimensions l x w x h | 24.4 x 24.4 cm |
| Manufacturer part no. | B550M PRO-VDH |
| Warranty | 36 Months |
| EAN / barcode | 4719072758417 |
